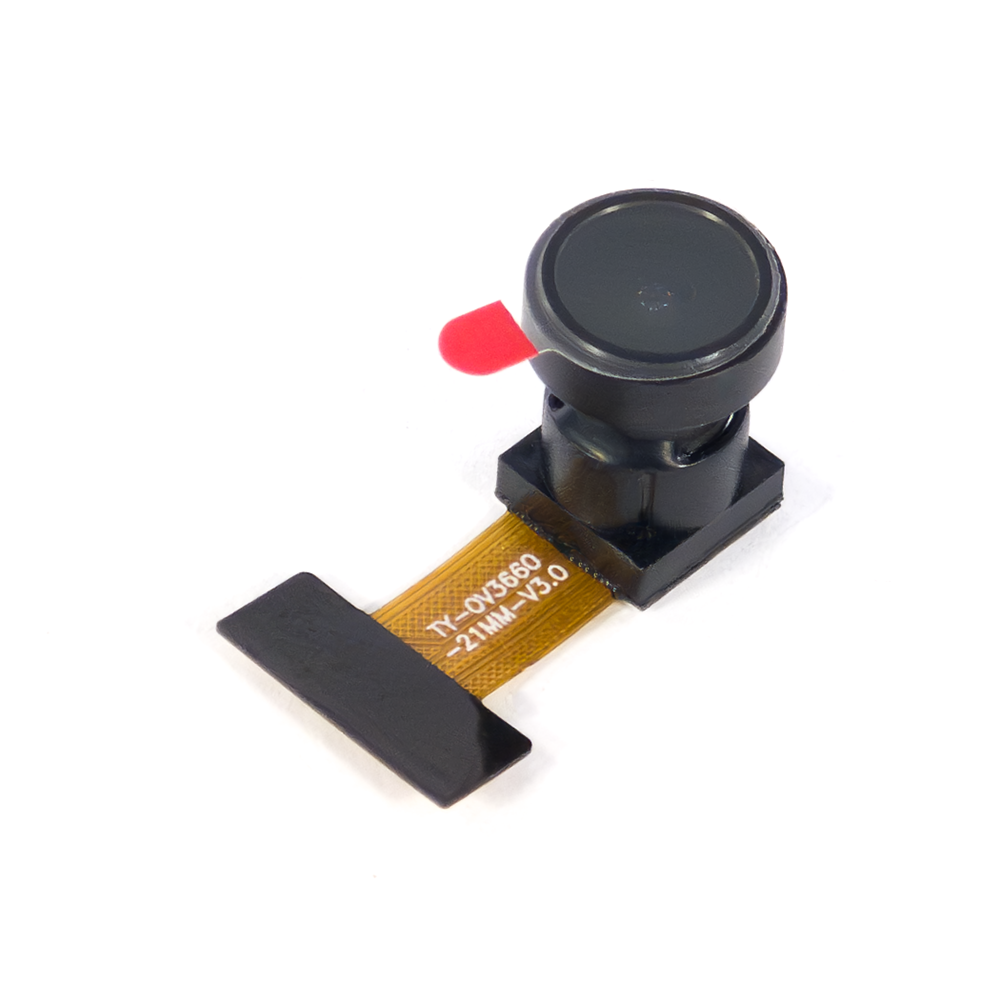

Features / Specs
- Manufacturer: Shenzhen Taiyu Electronic Technology Co., Ltd.
- Camera Sensor: OmniVision OV3660
- Resolution: 3 MP (2048 x 1536)
- Lens Size: 1/5″
- Field of View: 120° (supplier’s listing; no lens datasheet published)
- Output Formats: 8/10-bit RAW RGB / RGB565 / RGB555 / RGB444 / CCIR656 / YCbCr422 / compression
- Image Transfer Rate (Max): 2048 x 1536 @ 15 fps / 1080p @ 20 fps / 720p @ 45 fps / XGA (1024 x 768) @ 45 fps / VGA (640 x 480) @ 60 fps / QVGA (320 x 240) @ 120 fps
- Interface: DVP parallel (image data) / SCCB (control)
- S/N Ratio (Max): 34 dB
- Dynamic Range (Typical): 70 dB @ 8x gain
- Sensitivity (Typical): 670 mV/Lux-sec
- Shutter: Rolling shutter
- Exposure Interval (Max): 1560 x tROW
- Pixel Size: 1.4 x 1.4 μm
- Input Clock Frequency: 6 – 27 MHz
- Operating Voltage Range (Chip):
- Core: 1.5 V ±5% (embedded regulator)
- Analog: 2.6 – 3.0 V (2.8 V typical)
- I/O: 1.8 V / 2.8 V (1.8 V recommended)
- Active Current (Chip, Typical): 98 mA
- Standby Current (Chip, Typical): 20 μA
- Operating Temperature Range (Chip): -20 °C to +70 °C (junction temperature – the sensor die itself, which runs warmer than the air around it)
- Stable Image Temperature Range (Chip): 0 °C to +50 °C (junction temperature)
- Cable Type: 24-pin FFC (0.5 mm pitch)
- Length (Includes Camera & Cable): ~21 mm
