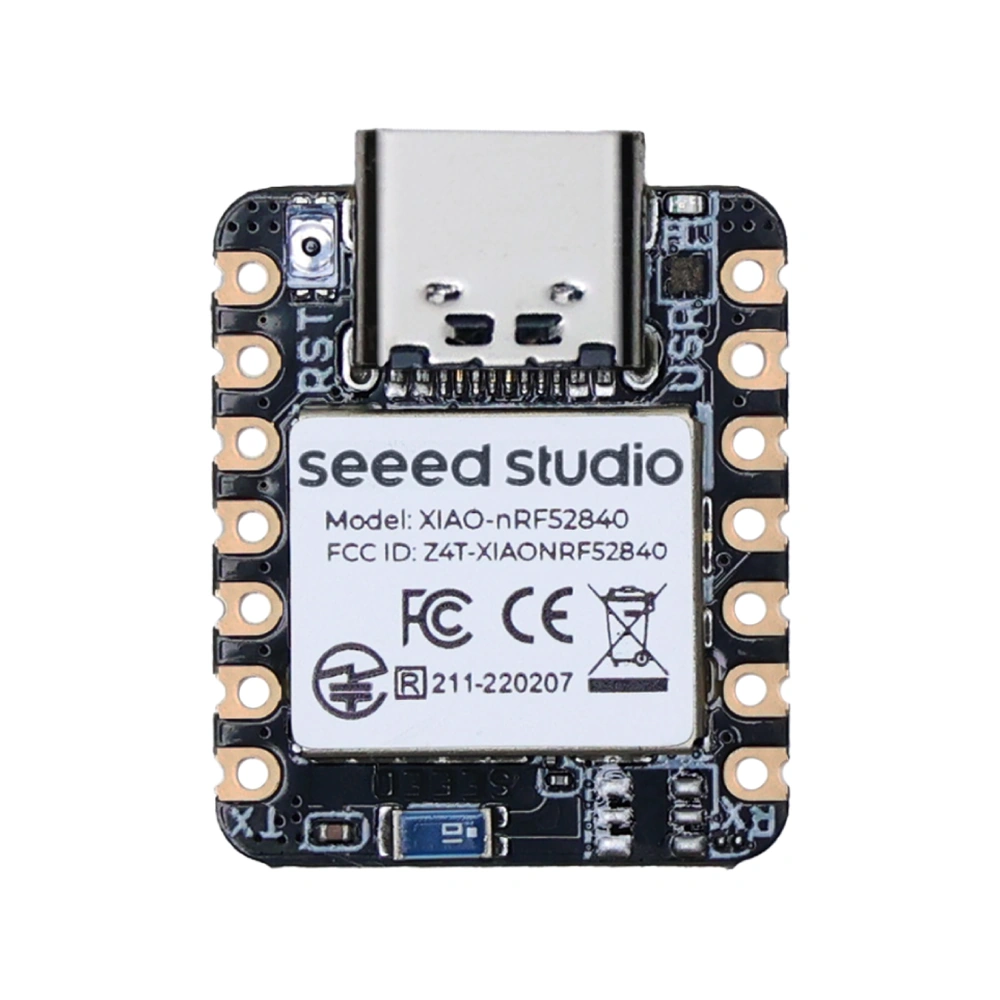

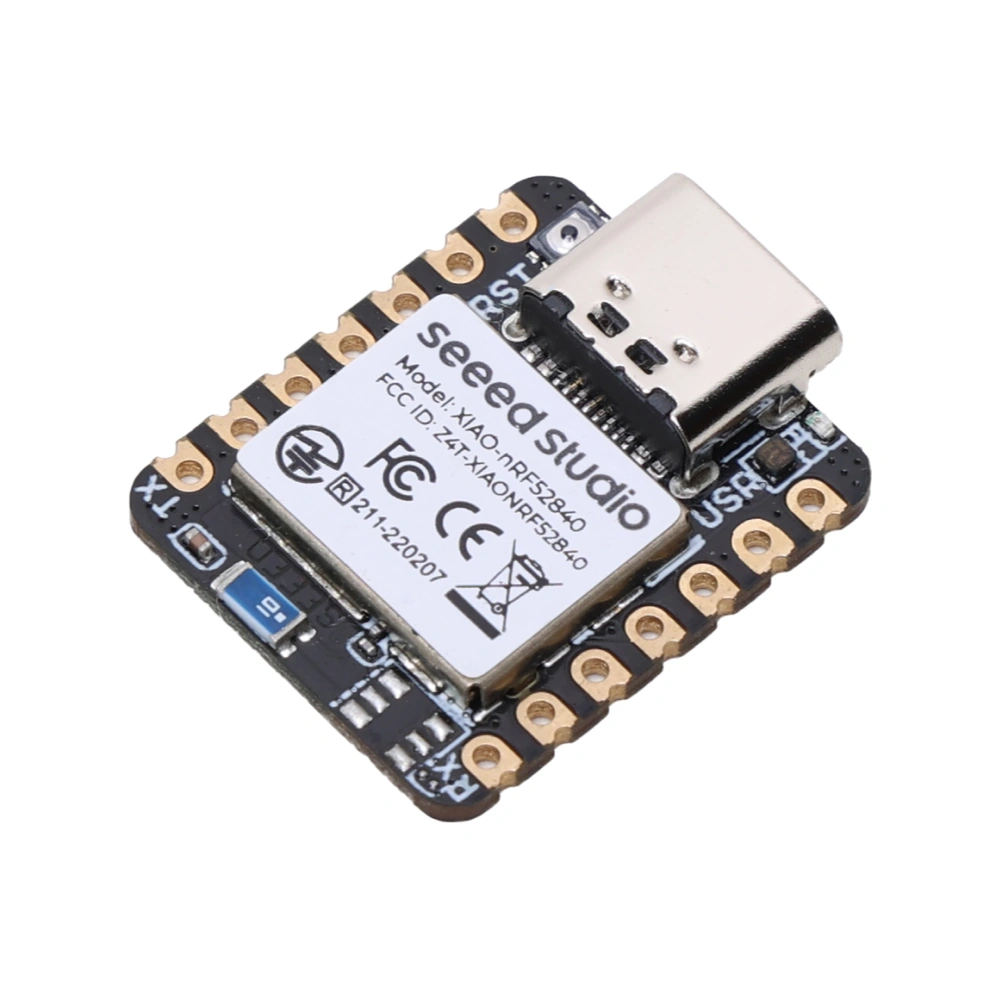

XIAO nRF52840 Board

R309.00

Package Includes

  • 1x XIAO nRF52840 Board
  • 2x 7-Way SIL Straight Pin Headers

Availability: 18 in stock

SKU: 2ME4001 Categories: , ,
  • Price Includes VAT
  • Durban Stock

Features / Specs

  • Manufacturer: Seeed Studio
  • Part Number: 102010448
  • Main Chip: Nordic nRF52840 (Arm Cortex-M4 32-bit processor with FPU, 64 MHz)
  • Antenna: Onboard chip antenna – no external antenna connector
  • Flash Memory: 1 MB (on-chip) + 2 MB (onboard, Quad SPI)
  • RAM: 256 kB
  • USB Interface: USB Type-C, connected directly to the nRF52840’s native USB (USB 2.0 full speed) – no USB-to-serial chip
  • Power Input Options:
    • USB Type-C Socket: 5 V
    • 5V Pin: Power input/output, connected directly to the USB Type-C VBUS line – no voltage on it when running from the battery; to feed 5 V in, fit a diode (Schottky, signal or power), anode to the source and cathode to this pin
    • Battery Pads: 3.7 V lithium battery, soldered to the BAT pads on the back of the board (no battery connector), charged by the onboard BQ25101 charger at 50 mA or 100 mA (selected via P0.13) – battery temperature sensing is not used
  • Power Switching: Runs from USB (or the 5V pin) when connected, and from the battery otherwise – a diode stops the battery feeding back out of the 5V pin
  • 3V3 Pin: Regulated 3.3 V output from the onboard SGM2040-3.3 LDO regulator
  • Operating Voltage Range (Chip): 1.7 – 3.6 V (supplied at 3.3 V by the onboard regulator)
  • I/O Logic Level: 3.3 V – inputs are rated to a maximum of VDD, so the pins are not 5 V tolerant
  • Standby Current (Max): 5 μA
  • Communication Interface: USB / SWD
  • Programming Support: Arduino / MicroPython / CircuitPython
  • Bootloader Mode: Double-press Reset
  • Operating Temperature Range (Chip): -40 °C to +85 °C
  • Usable Peripherals (This Board): 11x programmable GPIOs (all PWM-capable) / 1x UART / 1x I2C / 1x SPI / 6x ADC channels / 1x NFC
  • Full Chip Capabilities (Not All Exposed on This Board): 48x programmable GPIOs / 2x UART / up to 4x SPI master + 3x SPI slave / up to 2x I2C / 1x I2S / 1x PDM / 4x PWM units (4 channels each) / 12-bit 200 ksps ADC, 8 channels / QSPI / QDEC / 5x 32-bit timers / USB 2.0 full speed / NFC-A tag
  • Security Features (Chip): Arm TrustZone CryptoCell-310 / 128-bit AES co-processor (on-the-fly packet encryption) / flash access control list (ACL) / root of trust / random number generator
  • GPIO:
    • Usable: 11x programmable GPIOs on header pins D0 – D10 (P0.02 / P0.03 / P0.28 / P0.29 / P0.04 / P0.05 / P1.11 / P1.12 / P1.13 / P1.14 / P1.15)
    • Analog: D0 – D5 (6x ADC channels)

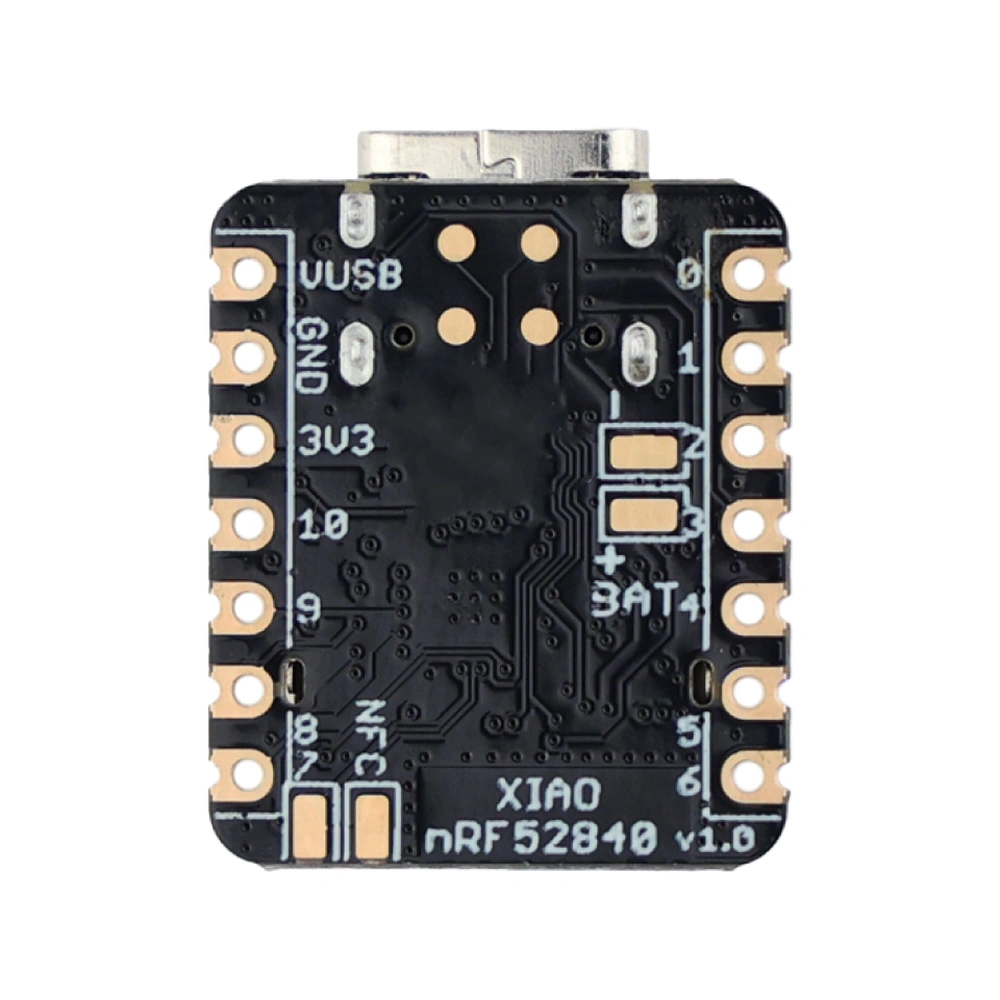

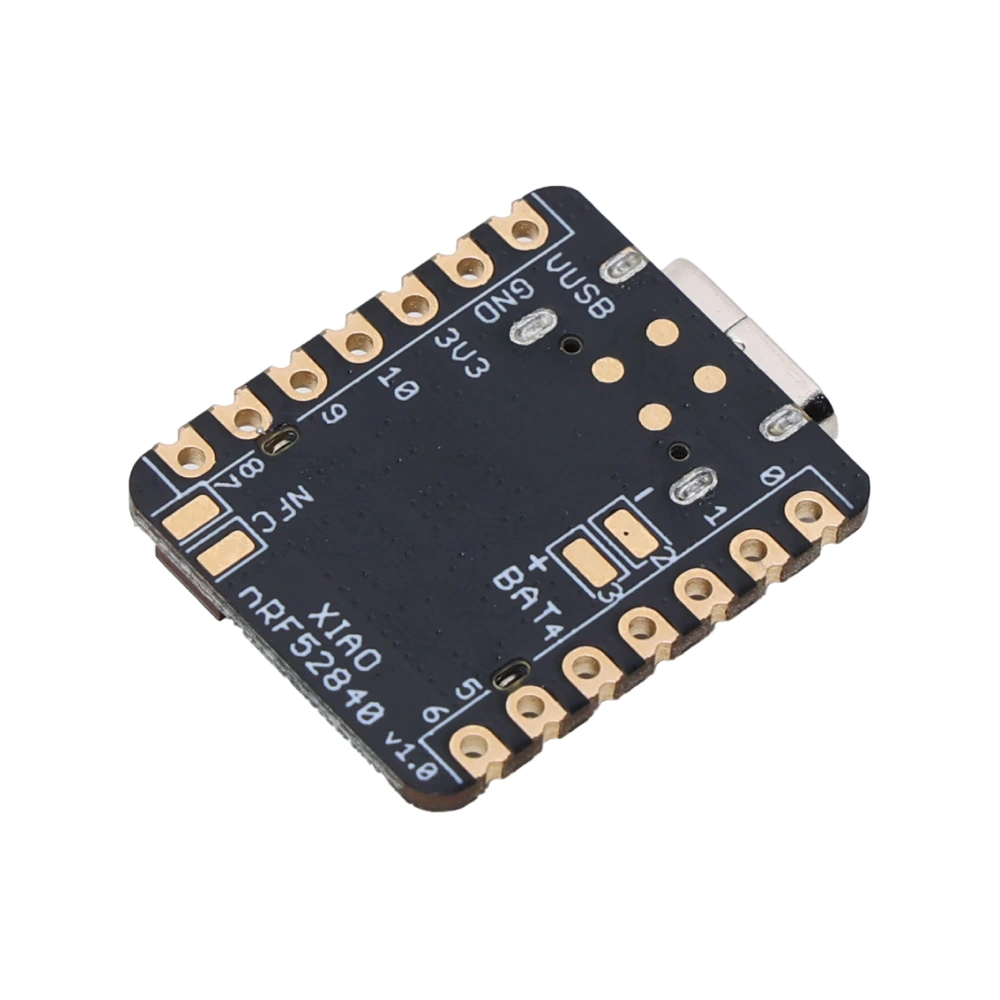

    • NFC: NFC1 (P0.09) / NFC2 (P0.10) on pads on the back of the board
    • Used Onboard: P0.00 / P0.01 (32.768 kHz crystal) / P0.20 – P0.25 (QSPI flash)
    • Battery Monitoring: Battery voltage is read on P0.31 (AIN7), enabled by P0.14 – keep P0.14 low when reading, and never set it high while charging, or P0.31 can be damaged
    • Debug: SWD pads on the back of the board (SWDIO / SWDCLK / RESET / GND)
  • Onboard Peripherals:
    • Buttons: Reset
    • LEDs: RGB user LED, lit when driven low (red P0.26, green P0.30, blue P0.06) / red charge LED, lit while the battery charges (P0.17 reads low)
    • Sensors: None – the IMU and microphone are on the XIAO nRF52840 Sense
  • Pin Description: Pinout diagram in the product images; full pin map in the linked Seeed wiki
  • Certifications: FCC (FCC ID Z4T-XIAONRF52840) / CE / Japan MIC (211-220207)
  • Dimensions (L x W x H): ~(21 x 17.8 x 4.5 mm)
  • Number of Pins: 2x 7 pins (14 total)
  • Header Pin Pitch: 2.54 mm
  • Pin Row Spacing (Centre to Centre): 15.24 mm
  • Bluetooth Version: Bluetooth 5 (LE), Bluetooth mesh
  • Bluetooth Data Rates: 125 kbps / 500 kbps / 1 Mbps / 2 Mbps
  • Bluetooth Transmit Power Range: -20 dBm to +8 dBm (4 dB steps)
  • Bluetooth Receive Sensitivity: -103 dBm @ 125 kbps / -95 dBm @ 1 Mbps
  • Other Radio Protocols (Chip): IEEE 802.15.4 (Thread / Zigbee) / ANT / 2.4 GHz proprietary
  • NFC: NFC-A tag (Type 2, with wake-on field)
