Features / Specs

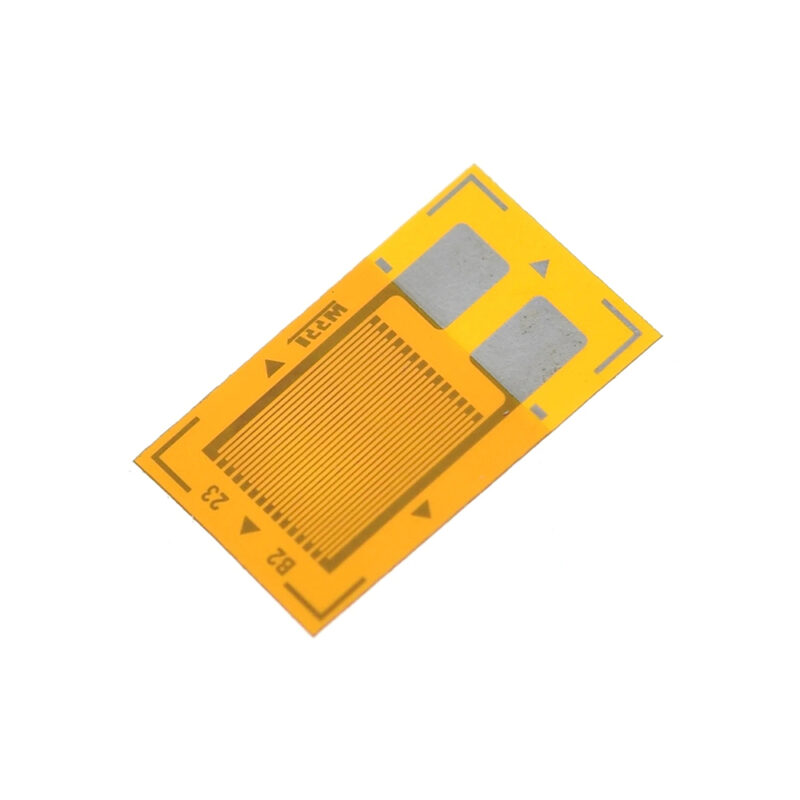

- Part No: BF350-3AA
- Nominal Resistance: 350Ω ±3Ω
- Mean Deviation: ≤0.4Ω
- Gauge Factor: 2.0 ±1.0%
- Grade: A
- Self Temperature Compensation (STC Code): 11 – Steel Alloy
- Coefficient of Thermal Expansion (CTE): ≤2 µm/m/°C
- Dispersion To Average Thermal Output: ≤30 µm/m
- Insulation Resistance (Room Temperature): 10,000MΩ
- Strain Limit (Room Temperature): 20,000 µm/m
- Mechanical Hysteresis: 1.2 µm/m
- Operating Temperature Range: -30°C to +60°C
- Backing Material: Novolak Epoxy
- Metal Foil Material: Imported Constantan Alloy
- Gauge Backing Dimensions: ~(6.9mm x 4mm)
- Gauge Grid Dimensions: ~(3.2mm x 3.1mm)
